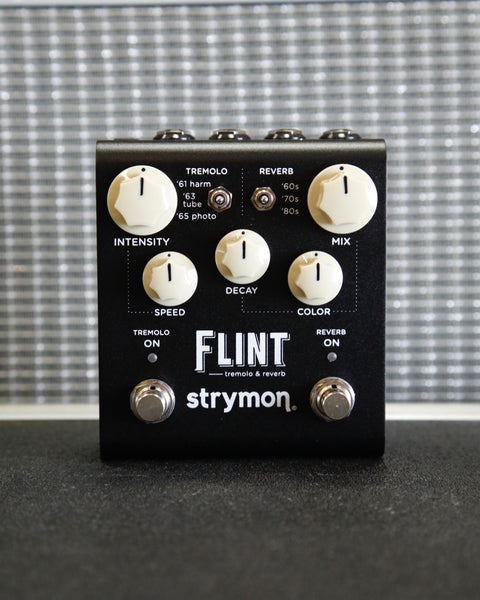

pedal flint strymon Strymon Flint Mk2 Tremolo Reverb Pedal

Flint gives you the pulsating, soothingly hypnotic effects pioneered in vintage amplifier tremolo circuits, along with three classic and completely unique reverb algorithms.
On the tremolo side of the pedal you can choose between the sonically complex ’61 Harmonic Tremolo, the swampy and sultry ’63 Power Tube Tremolo, and the sharp
and balanced ’65 Photocell Tremolo. On the reverb side you can select the classic ’60s Spring Tank Reverb, the inventive ’70s Electronic Plate Reverb, or the nostalgic ’80s Hall Rack Reverb.

With nine parameters to tweak, you get extensive control over the tremolo and reverb characteristics. Go from splashy, pulsing twang, to throbbing, swampy blues, all the way to ambient, trembling, and serene reverberated pads. Couple that with true bypass, and a premium quality analog front end and output section, and you have the history of tremolo and reverb in a pedalboard friendly format.

Vintage Sound, New Features.

Our second generation Flint gives you the same gorgeous tremolo and reverb sounds from our original and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio.

• Extended Control - Love slow tremolo? The Speed knob range has been expanded to slow the tremolo down to nearly 1Hz at its minimum setting. On the reverb side, pre- delay time is now adjustable.

• MIDI - Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via El Flint’s EXP/MIDI jack or USB-C connection. Tremolo speed can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

• Hardware Improvements - A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

SOUND DESIGN

‘61 Harmonic Tremolo

The ’61 Harmonic Tremolo is somewhat rare due to its very short period of availability in tube amplifiers in the early 1960s. It gets its signature sound through a dual-band filtering effect that alternately emphasizes low and high frequencies. The end result is a soothing pulse that has shades of a mild phaser effect combined with tremolo, due to the nature of the frequency bands that are alternated.

‘63 Tube Tremolo

The ’63 Power Tube Tremolo utilized the LFO signal to directly influence the power
tube bias of the amplifier’s push-pull output stage. The power tubes are biased into lower and higher idle currents, creating the fluctuating gain that produces the tremolo effect. The effects of crossover distortion at low tremolo volumes, increased power tube harmonic distortion at maximum tremolo volumes, as well as the influence of power- supply sag, all add up to the boggy and dirty nature of this tremolo circuit.

‘65 Photocell Tremolo

The ’65 Photocell Tremolo is a faithful recreation of the classic photo-trem circuits found in mid-1960s American amplifiers. Those classic circuits used a light-dependent resistor (LDR) to attenuate the input signal, coupled with a miniature neon bulb that is connected to the LFO. As the LFO oscillates, the bulb gets brighter and dimmer which in turn varies the resistance of the LDR. The varying resistance works with other circuit impedances to change the signal level, which produces a characteristically “hard” sounding tremolo that moves between two levels, reminiscent of a square wave.

‘60s Spring Tank Reverb

The ’60s Spring Tank Reverb is our faithful recreation of the full-size two-spring tank that was commonly used in vintage amps. The two-spring tank uses spring segments of differing delay times, which adds to the complexity of the reverberated sound. Contributing greatly to the sound are the input and output tube circuits which convert the electrical guitar signal into a mechanical signal and then back to an electrical signal.

‘70s Electronic Plate Reverb

The ’70s Electronic Plate Reverb pays homage to one of the earliest digital reverbs ever created. The astounding hardware-based algorithm used multiple delay-lines configured in parallel, with each delay featuring multiple output taps and filtered feedback paths. The result is a rich, smooth reverb with a very quick build-up in density due to the summation of the many parallel output taps.

‘80s Hall Rack Reverb

The ’80s Hall Rack Reverb is our rendition of the now-nostalgic digital microprocessor rack reverbs from the late ’80s. The limited processing power of the day led to the implementation of efficient regenerative series loops of all-pass filters, delays, and low-pass filters. Modulating delay lines were used to increase the reverb density and add warmth. This reverb provides the signature sound of distinctive early reflections followed by the slowly-building density of the late reverberation.

Effect Order

Want to run your reverb intro tremolo like your favorite vintage tube amps did?

Or do you prefer modulation before reverb for a cleaner, modern tone?

Flint gives you options for both with an Effect Order secondary function that lets you choose exactly how you want your reverb and tremolo routed for ultimate tonal control.

This setting is accessible as a Live Edit secondary function and is savable per-preset.

Pre-Delay

Pre-Delay controls the delay time before the reverberated signal appears, and is now accessible as a Live Edit secondary function, savable per-preset.

MIDI Control

FEATURES

Our new generation of Flint features full MIDI implementation, allowing you to control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via Flint’s EXP/MIDI jack or USB-C connection. Tremolo speed can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

Remotely bypass or engage the pedal, sync tremolo speed changes along with your tracks, automate knob adjustments, recall unique presets for each song on your setlist — the possibilities with MIDI are limitless.

True/Buffered Bypass

Flint lets you choose electromechanical relay switched true bypass for a 100% untouched, unprocessed signal when the pedal is bypassed (this is the default setting), or you can opt for our premium quality buffered bypass that conditions your signal to preserve its integrity by preventing the high end roll-off that can happen due to longer cable runs.

Analog JFET Input

Uncompromised dynamics and feel. Exceptional touch sensitivity and responsiveness. Flint feels just as good as it sounds, thanks to a high impedance ultra-low noise discrete Class A JFET preamp input.

Boost/Cut

We all need a lift every once in a while. Flint features a +/-3dB boost/cut secondary function that lets you add a little extra “oomph” when you engage the pedal — or dial things back a bit if you need a more subtle delay without changing your Mix control.

No need to make compromises when it comes to signal routing or pedal placement —

Flint features full stereo in/out capabilities.

A single TRS input jack allows Flint to keep its compact form factor while giving you the option to use a stereo input signal. A dedicated rear panel Input switch allows you to easily set Flint for operation with a stereo (TRS) or mono (standard TS) input source. Low impedance dual TS output jacks let you use Flint as a stereo effect.

Line/Instrument Level

Pedals aren’t just for guitarists. Flint’s adjustable input signal level makes it a versatile tool for endless applications from the studio to the stage.

By setting Flint to line level input mode, you get 10dB of added headroom, allowing you to use Flint with bass guitars with active pickups, synthesizers, keyboards, effects loops, and more.

Powerful New ARM Processor

Significant developments in mobile phones and computers have led to an evolution in technology that now allows our pedals to perform more simultaneous processes with less power draw than ever before.

That means more processing power for every sonic nuance with less power consumption on your pedal board.

Stereo In/Out

Ins, Outs, and Switches

SPECS

• High impedance ultra low-noise discrete Class A JFET TRS stereo input.

• Low impedance independent TS stereo outputs.

• Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch,

  MultiSwitch Plus, or TRS MIDI connection.

• USB jack for controlling via MIDI from a computer or for performing firmware

  updates.

• Dedicated Reverb On/Off & Tremolo On/Off footswitches

  Audio Quality

• Premium JFET analog front end

• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide

  uncompromising audio quality

• 520MHz ARM Superscalar processor

• 32-bit floating point processing

  20Hz to 20kHz frequency response

• Audio Input Impedance: 1M Ohm

• Audio Output Impedance: 100 Ohm

  More

• Strong and lightweight anodized black aluminum chassis

• 9V DC power supply included

• Power requirements: maximum 9 volts DC center-negative, with a minimum of

  300mA of current.

• Dimensions: 4.5” deep x 4” wide x 1.75” tall (11.4 cm deep x 10.2 cm wide x 4.4 cm

  tall)

• Designed and built in the USA
